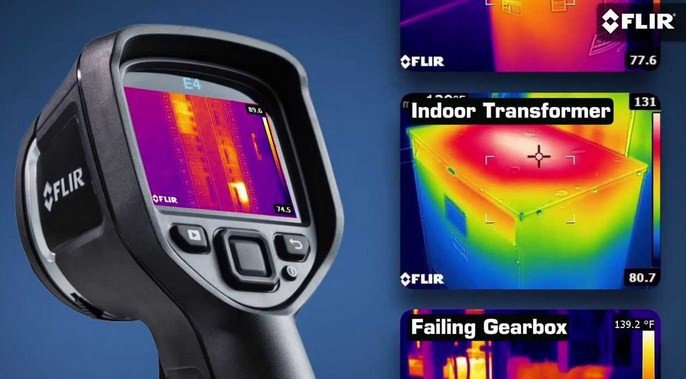

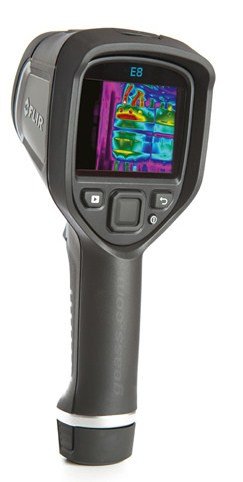

FLIR E4,E5,E6,E8 Thermal Imager

 https://www.youtube.com/watch?v=nbkGM0BwfPs

FLIR® Ex-Series Infrared Camera Specifications

Model NumberFLIR E4FLIR E5FLIR E6FLIR E8


Imaging and Optical Data
IR Resolution 80 × 60 120 × 90 160 × 120 320 × 240
Thermal Image Sample
MSX Resolution 320 × 240
Thermal Sensitivity <0.15°C

<0.10°C  <0.06°C
Field of View 45° × 34°
Focus Focus Free
Detector Uncooled Microbolometer
Screen 3.0 in. 320 × 240 color LCD
Frame Rate 9 Hz
Analysis
Image Modes IR image, visual image, MSX, thumbnail gallery IR image, visual image, MSX, picture-in-picture, thumbnail gallery
Multi Spectral Dynamic Imaging (MSX) Learn More About MSX IR image with enhanced detail presentation
Picture-in-Picture N/A IR area on visual image
Temperature Range –4° F to 482°F (–20° to 250°C)
Accuracy  ±2% or 2°C
Measurement Modes Spot (center) mode
2 modes: 1 Spot (center); 1 Area Box (Min/Max)
3 modes: 1 Spot (center); 1 Area Box (Min/Max); Isotherm (above/below)

Alarm N/A N/A Blue below or red above set temperature
Emissivity Correction Variable from 0.1 to 1.0
Set-Up
Color Palettes Iron, Rainbow, and Gray
Set-up Commands Local adaptation of units, language, date and time formats
Image Storage
Storage Capacity Internal memory store at least 500 sets of images
Storage Mode Simultaneous storage of images in IR, visual and MSX
File Formats Standard JPEG, 14-bit measurement data included
Other
Battery Type / Op Time  ~4 hours
Dimensions / Weight   / 1.27 lbs (0.575 kg)
Drop  2 meter / 6.6 ft
Warranty FLIR Warranty: Learn More

Image Resolution Comparison: FLIR® Ex-Series Infrared Cameras

Not sure which FLIR Ex-Series camera is right for you? Compare resolution to find the best fit for your application.

FLIR E4 Resolution

FLIR E4 80 × 60 Resolution


FLIR E5 Resolution

FLIR E5 120 × 90 Resolution


FLIR E6 Resolution

FLIR E6 160 × 120 Resolution


FLIR E8 Resolution

FLIR E8 320 × 240 Resolution



Zoomed in on hot area

FLIR E4 Resolution

FLIR E4 80 × 60 Resolution


FLIR E5 Resolution

FLIR E5 120 × 90 Resolution


FLIR E6 Resolution

FLIR E6 160 × 120 Resolution


FLIR E8 Resolution

FLIR E8 320 × 240 Resolution
