232 is used in power system maintenance. Beside power measurement, it also provides the voltage, current measurement and continuality function.
Features:
- 4 Digital Display.
- TRUE RMS.
- Autoranging.
- Auto Power Off.
- Peak Hold Function.
- Data Hold Function.
- Auto Zero.

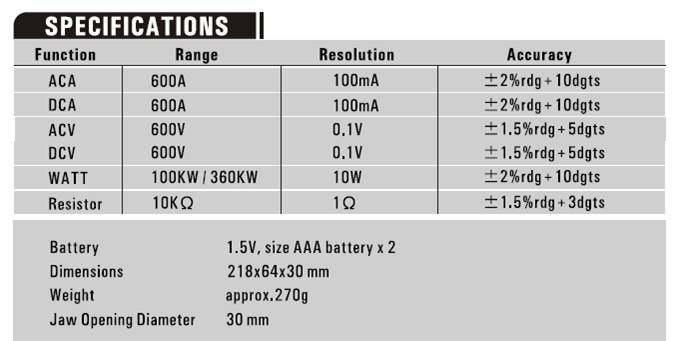

Specifications:
|
|
Standard Accessories:
Bettery, Operation Manual, Carrying Case, Test Lead.
AC Current
| Range | Resolution | Accuracy | |
|
50Hz~60Hz
|
60Hz~500Hz
|
||
| 600A | 0.1A | 1.5%+5 | 2.5%+5 |
DC Current
| Range | Resolution | Accuracy |
| 600A | 0.1A | 1.5%+5 |
AC Voltage
| Range | Resolution |
Accuracy
50Hz~500Hz
|
| 600V | 0.1V | 1.5%+5 |
DC Current
| Range | Resolution | Accuracy |
| 600A | 0.1A | 1.5%+5 |
KW
| Range |
Resolution
|
Accuracy
|
||
|
50Hz~60Hz
|
60Hz~500Hz
|
|||
|
AC Power
|
100KW
|
0.01KW
|
1.5%+3
|
2.5%+3
|
|
360KW
|
0.1KW
|
|||
|
DC Power
|
100KW
|
0.01KW
|
1.5%+3
|
|
|
360KW
|
0.1KW
|
|||
Continuity
|
Range
|
Active Region
|
 |
< 100Ω
|
|
Range
|
Resolution
|
Accuracy
|
|
10000Ω
|
1Ω
|
1.5%+3
|
Jaw opening size: 130mm
Battery: 1.5V AAA x 2
Dimensions: 218 x 64 x 30mm
Weight: 270g
