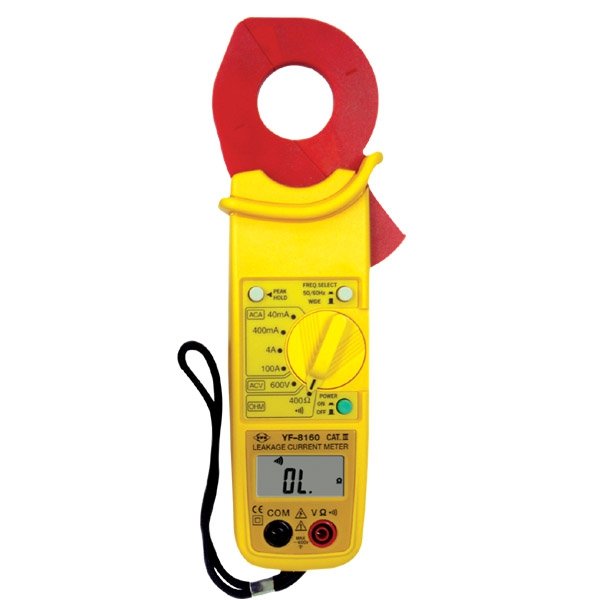

Tenmars YF-8160 100A Leakage AC Clamp Meter

Category: Clamp Meter
Model No.: : YF-8160
Product Description

- CAT III 600V.
- Maximum conductor size : 30mm.
- Display counts : 4,000.
- Test ranges: ACV (600V), ACA (100A), Ohm, Continuity.
- Leakage Current Test.

Product Character

DISPLAY:

- 3¾ digits LCD with maximum reading 4000.

- Overload indication.

- Low battery indication.

FUNCTIONS:

- Peak Hold.

- Leakage Current Test.

- Test ranges: ACV (600V), ACA (100A) , Ohm, Continuity.

- Continuity test below 100Ohm will have buzzer sound.

- Alternative for supply frequency.

- With LPF (Low Pass Filter) function, 50/60Hz and wide frequency function (40~1KHz).
- Maximum conductor size : 30mm.
- Dimension : 250mm x 85mm x 35mm.

  • Specification

SPECIFICATIONS

Model

YF-8160

     Max measuring current

100A

     Display counts

4000

     Max. Conductor size

35mm

     AC Current

0.01mA ~ 100A +/- (1.5%+5)

     Leakage current

YES

     AC Voltage

1V ~ 600V +/- (1.5%+5)

     Continuity buzzer

YES (below 100Ohm )

     Peak hold

YES

     Size

250*85*35mm

     Weight

342g
