Fluke FOM Fiber Optic Meter

Category: Fiber Optics

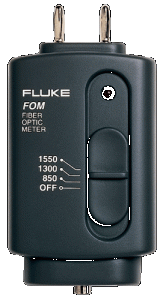

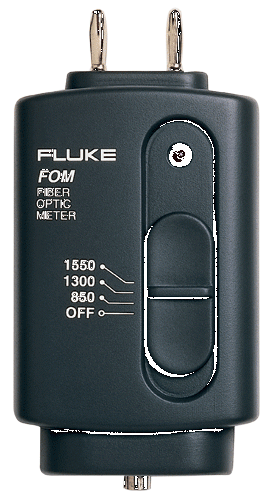

The Fluke Fiber Optic Meter (FOM) helps you test and maintain fiber optic cable without having to buy a whole new meter. Plug the FOM directly into any DMM with a mV dc function and a 10 MΩ input impedance and quickly and accurately verify fiber optic cable system loss. Light sources and patch cords sold separately.

Specification
Calibrated Wavelengths 850 nm, 1300 nm (used also for 1310 nm), and 1550 nm
Dynamic Range  +3 to -50 dBm
Measurement Accuracy ±0.25 dB at -10.0 dBm and 25°C
Display Resolution  0.01 dB (0.001 µW)
Detector Type Germanium
Optical Adapter ST ST
Operating Temperature 0° C to +40°C
Storage Temperature -20° C to +70°C
Dimensions  4.5 x 2.5 x 1.5 in (11.4 x 6.4 x 3.8 cm)
Weight 5.0 oz (142g)
Battery Type 9V alkaline
